True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

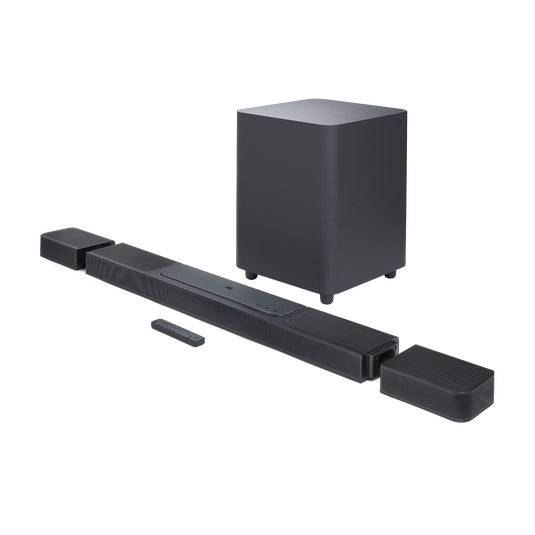

Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL SOUNDBar 1300X delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

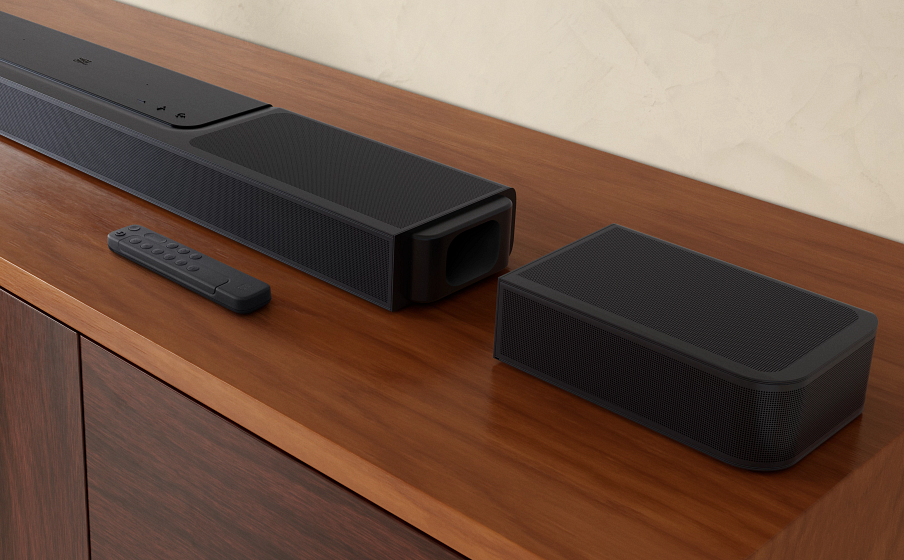

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
General Specifications
- Sound system
- 11.1.4 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Networked standby power
- < 2.0W
- Operating temperature
- 0°C – 45°C
Audio Specifications
- Total speaker power output (Max @THD 1%)
- 1170W
- Soundbar output power (Max @THD 1%)
- 650W
- Surround speaker output power (Max @THD 1%)
- 2x 110W
- Subwoofer output power (Max. @THD 1%)
- 300 W

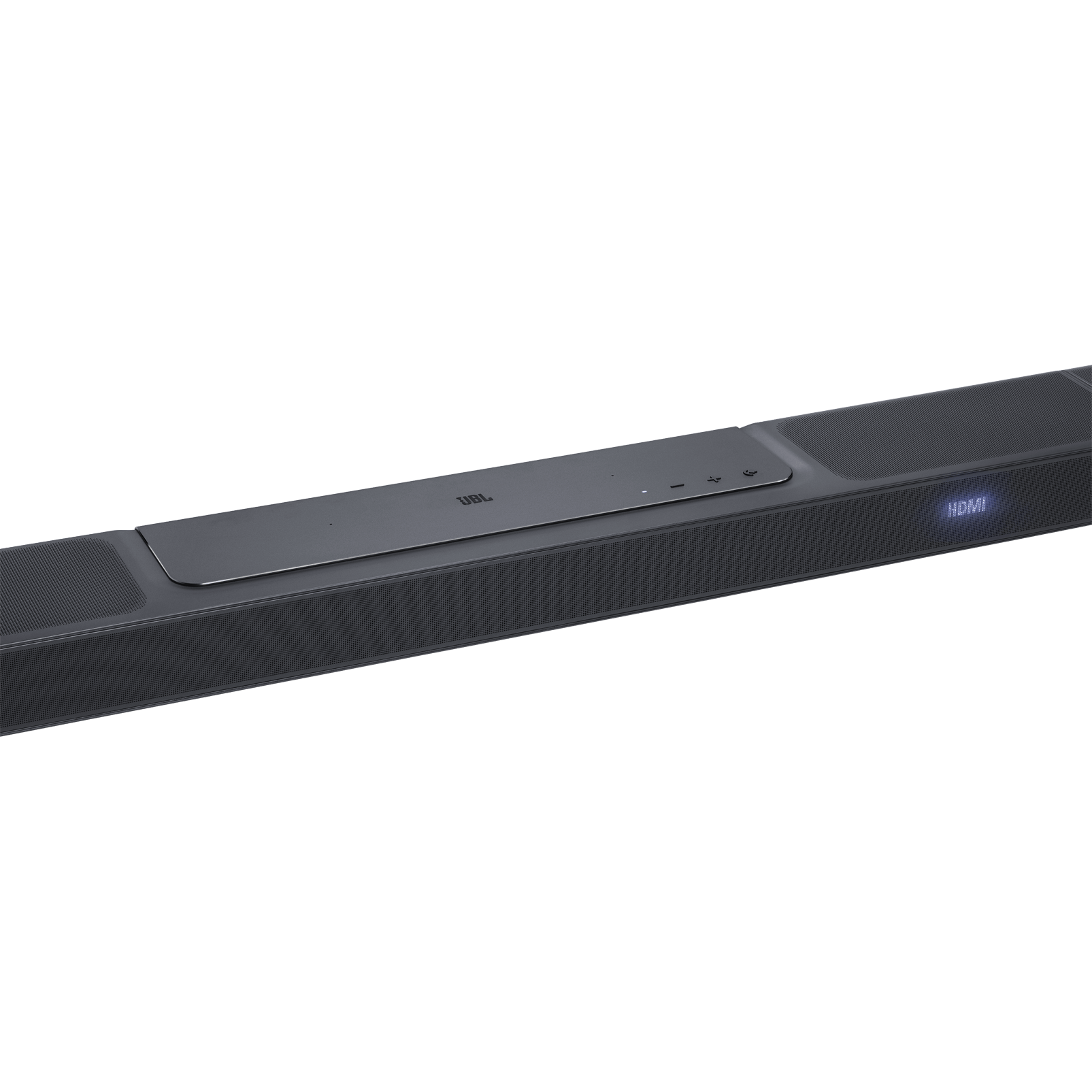

- Soundbar transducer
- 6x (46×90)mm racetrack drivers, 5x 0.75″ (20mm) tweeters, 4x 2.75″ (70mm) up-firing full-range drivers
- Surround speaker transducer
- (46×90)mm racetrack driver, 0.75″ (20mm) tweeter, 2.75″ (70mm) up-firing full-range driver, 2x (48×69)mm rounded rectangle Passive Radiators

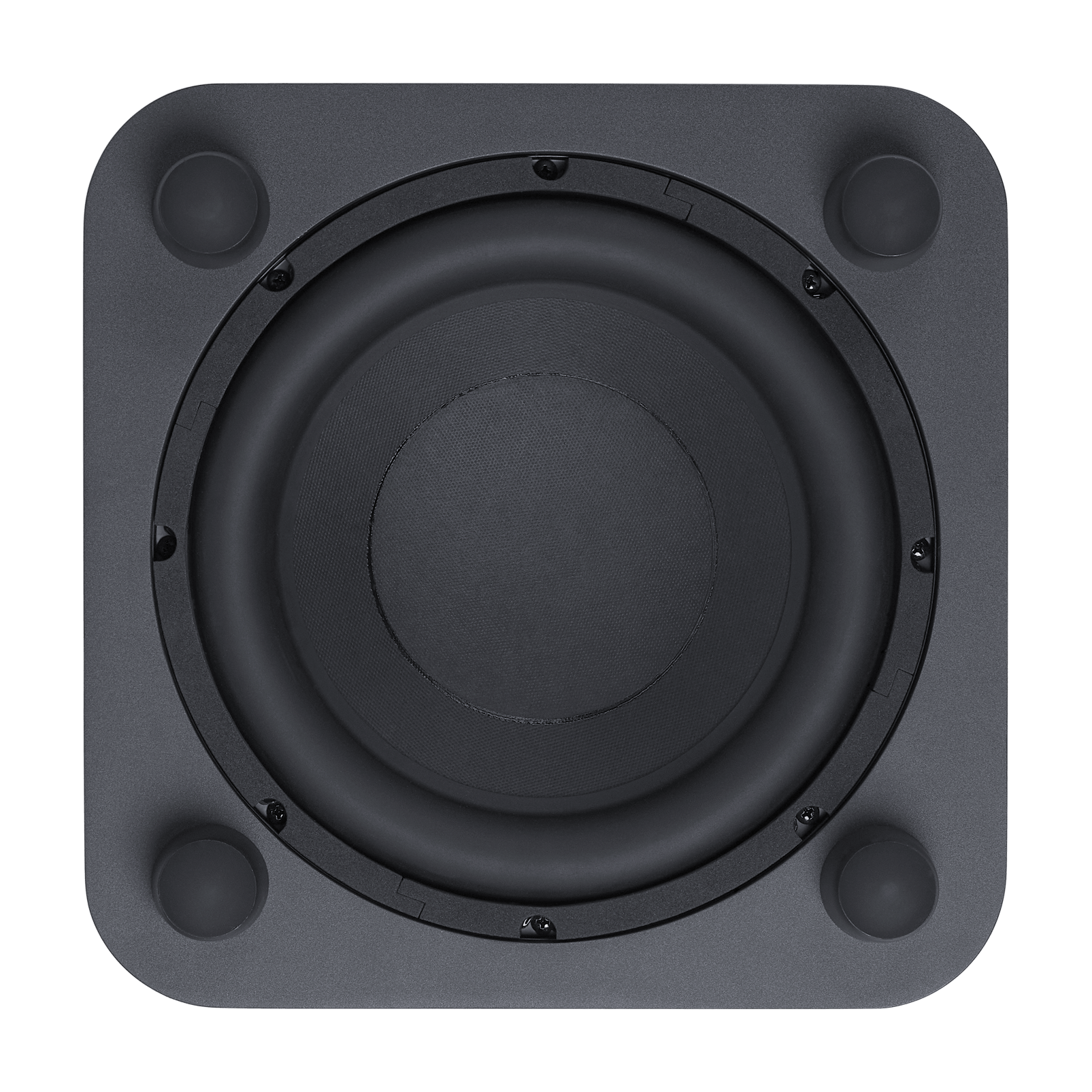

- Subwoofer transducer
- 12” (311mm)
- Frequency response
- 33Hz – 20kHz (-6dB)
- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1376 x 60 x 139 mm / 54.2″ x 2.4″ x 5.5″
- Main soundbar dimensions (W x H x D)
- 1000 x 60 x 139 mm / 39.4″ x 2.4″ x 5.5″

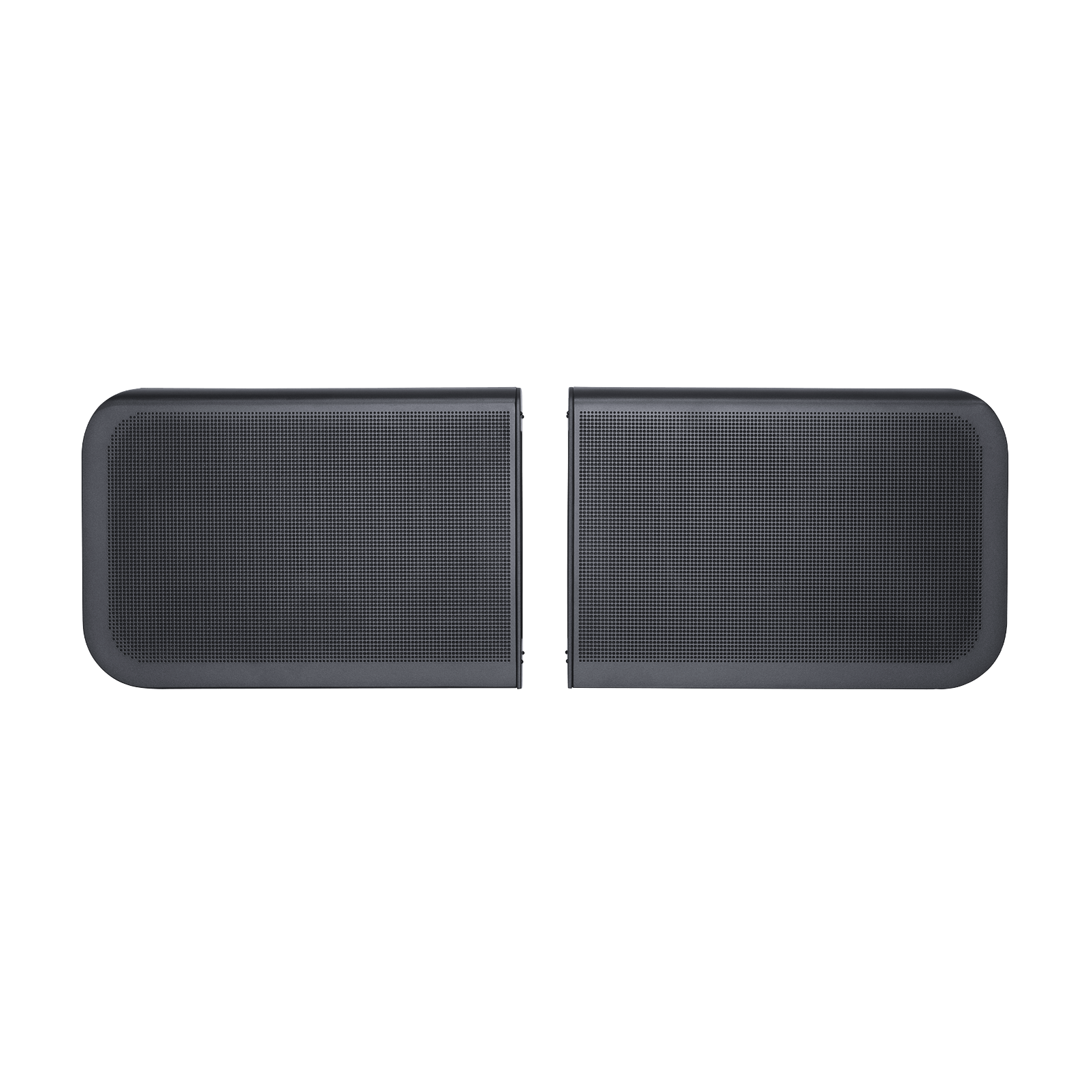

- Detachable surround speaker dimensions (each) (W x H x D)
- 202 x 60 x 139 mm / 8″ x 2.4″ x 5.5″
- Subwoofer dimensions (W x H x D)
- 366 x 481 x 366 mm / 14.4″ x 18.9″ x 14.4″
- Soundbar weight
- 4.3kg / 9.5 lbs
- Detachable surround speaker weight (each)
- 1.25 kg / 2.75 lbs
- Subwoofer weight
- 15.65 kg / 34.5 lbs
- Packaging dimensions (W x H x D)
- 450 x 1135 x 549 mm/ 17.7″ x 44.7″ x 21.6″
- Packaging Weight
- 27kg / 59.50 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kpbs
- Bluetooth version
- Main bar – 5.0, Detachable surround speaker – 5.2
- Bluetooth profile
- Main bar – A2DP 1.2 and AVRCP 1.5, Detachable surround speaker – A2DP 1.3 and AVRCP 1.6
- Bluetooth transmitter frequency range
- 2400MHz – 2483.5MHz
- Bluetooth transmitter power
- <15dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
- 2.4G Wi-Fi transmitter power
- < 20dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
- 2.4G wireless frequency range
- 2406 – 2474MHz
- 2.4G wireless power
- ＜10dBm (EIRP）
Battery
- Lithium battery
- 3.635V, 6600 mAh
- Detachable surround speaker playtime
- up to 12 Hours (may vary according to content type and volume level)
Video Specifications
- HDMI video input
- 3
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10, Dolby Vision
- 1x Main soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
- 2 x Side caps
- Quick start guide
- Safety instruction and Warranty card
- Wall mount template
